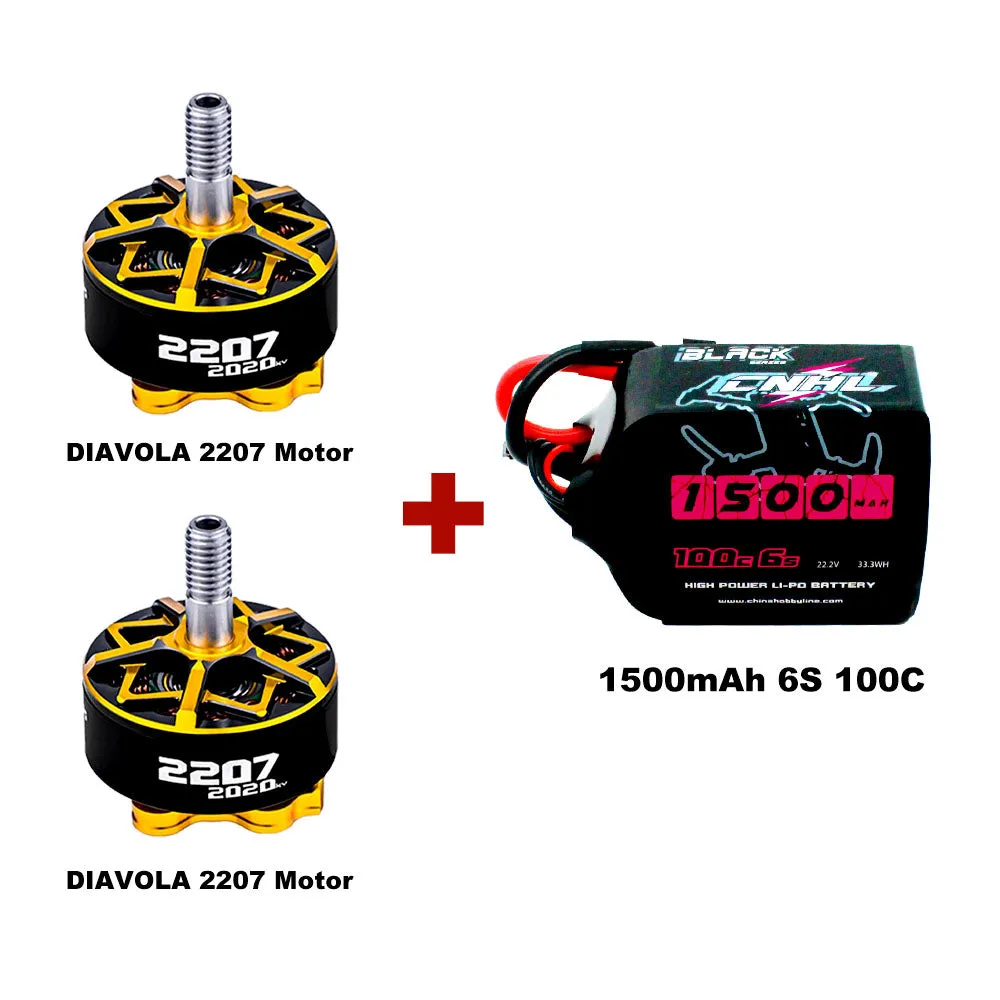

Name: [Combo] 1 Pack 1500mAh 6S 100C Lipo Battery & 2 Packs Co-brand Motor DIAVOLA 2207
SKU: 712902

Product Details ＋

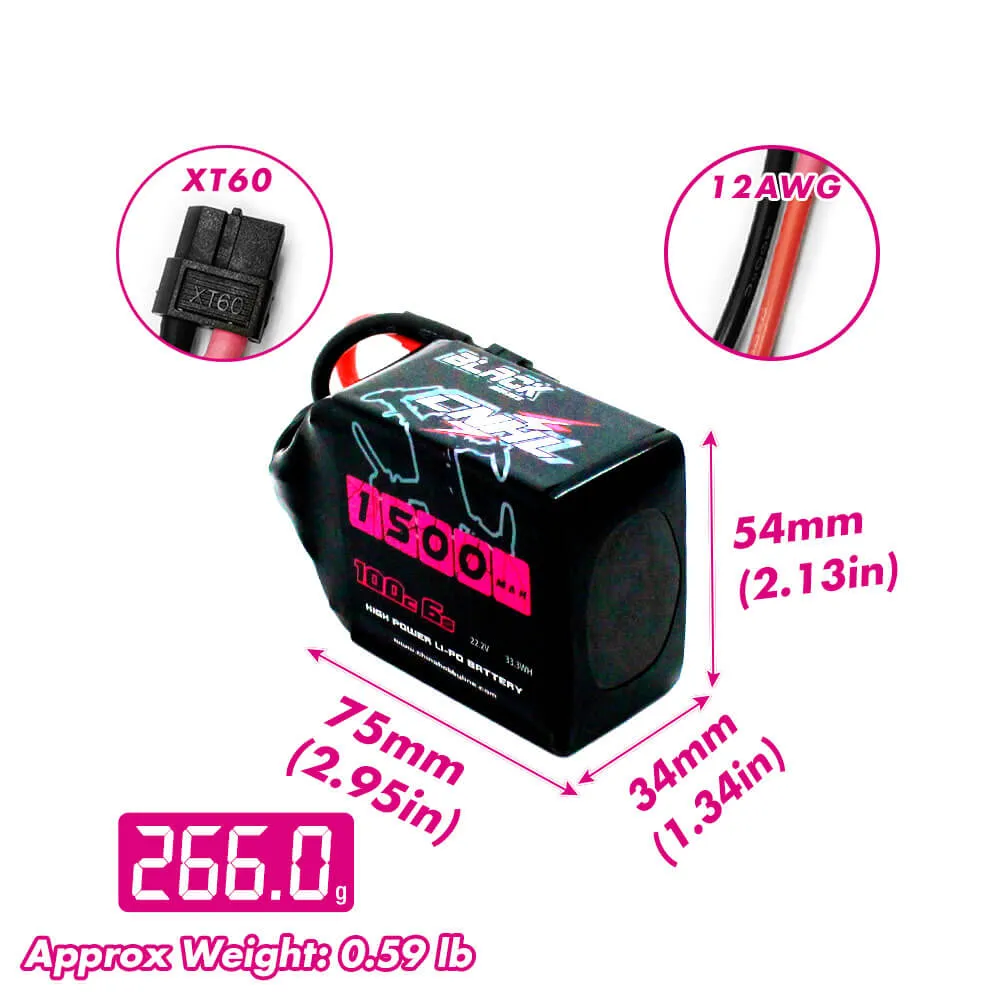

Specifications for Lipo Batteries

Stock Number: 1501006BK
Capacity: 1500mAh
Voltage: 22.2V / 6-Cell / 6S1P
Discharge Rate: 100C Continual / 200C Burst
Charge Rate: 5C Max
Size(1-5mm difference): 54X34X75mm
Approx Weight(±5g): 266g
Output Connector: XT60
Balance Connector: JST / XH
Wire (AWG): 12#
What you get: 1 Pack of CNHL 22.2V 100C 1300mAh 6S Lipo Battery with XT60 Plug, 2 Packs of Co-brand Motor DIAVOLA 2207

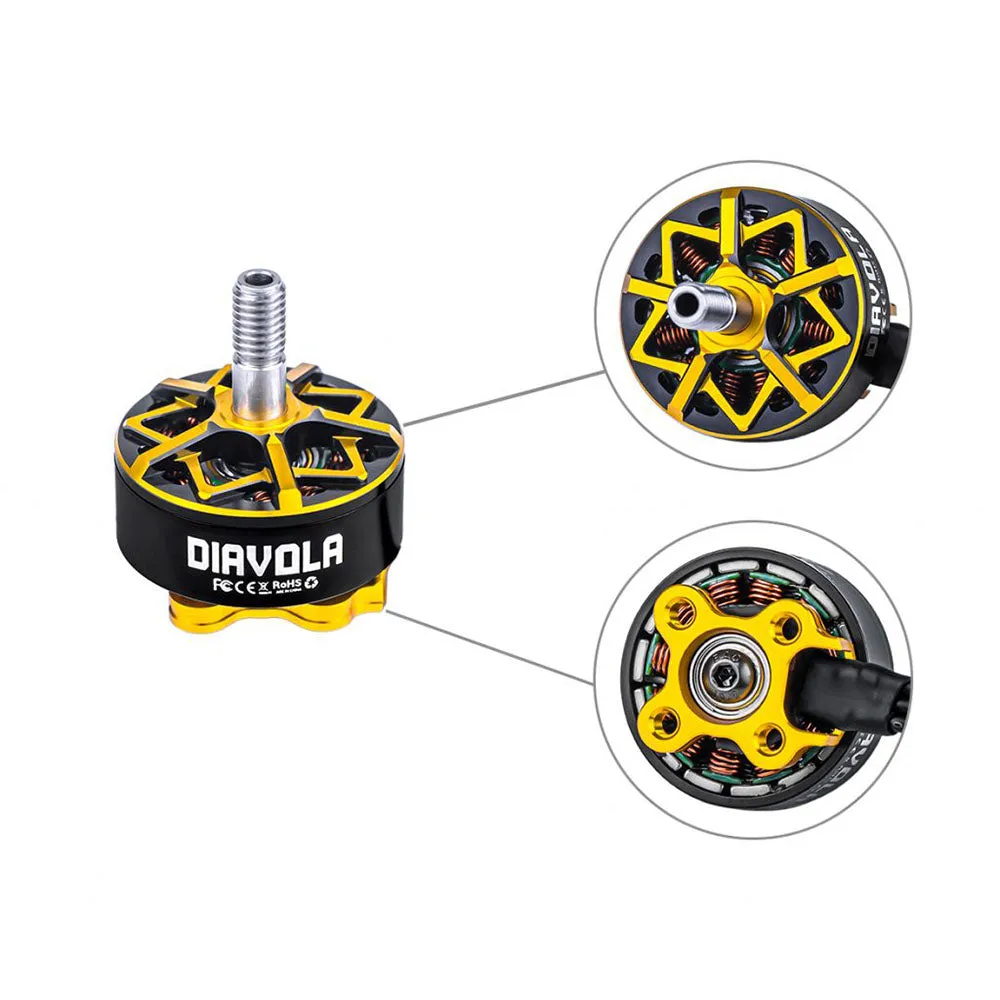

Specifications for Motor

1960 KV is for freestyle
2020 KV is for racing
Configuration: 12N14P
Motor stator size: 2207
Motor cables: AWG 20#, 150MM
Motor dimensions (Dia *Len): 26.9*32.8MM
Motor weight (excluding 150MM cables) : 30.5g

Compatible RC Models:

CNHL 6S Lipo Battery 1500mAh 100C 22.2V specially designed for FPV Quadcopter, Danaus, Vortex, FLIP FPV 250S MINI, Nemesis 240 Mini, Tweaker 180 Micro Quad, LRC Freestyle V1(270-296)FLIP FPV 260H MINI, drone, and FPV.

More Choices for You:

If your frame size is 200-220mm or your propeller size is 5 inches, you can also use the higher capacity CNHL or higher discharge rate CNHL ; If you don't need such strong power, you can use our lighter FPV lipo batteries, such as and . These batteries will be lighter and easier to operate. These batteries can bring you freestyle, racing, or fast cinematic shots. If you like long-range cruising, we strongly recommend that you use the new item CNHL lipo battery, which can bring longer flight times. Only if the voltage, dimension, and plug match, then it will fit.

Notice:

For the RC battery, only if the voltage and the plug match, then it will fit.
Please stop charging immediately when the cell voltage has been charged to 4.2V (Normal cell voltage is between 3.7V~4.2V).
To double make sure safe, please check first whether the battery surface is alright when you get it and whether the voltage is normal before using.
If the new battery won’t hold a full charge or loss the charge very quickly in a short time, please use the Balance Charger to charge and recycle several times first.
