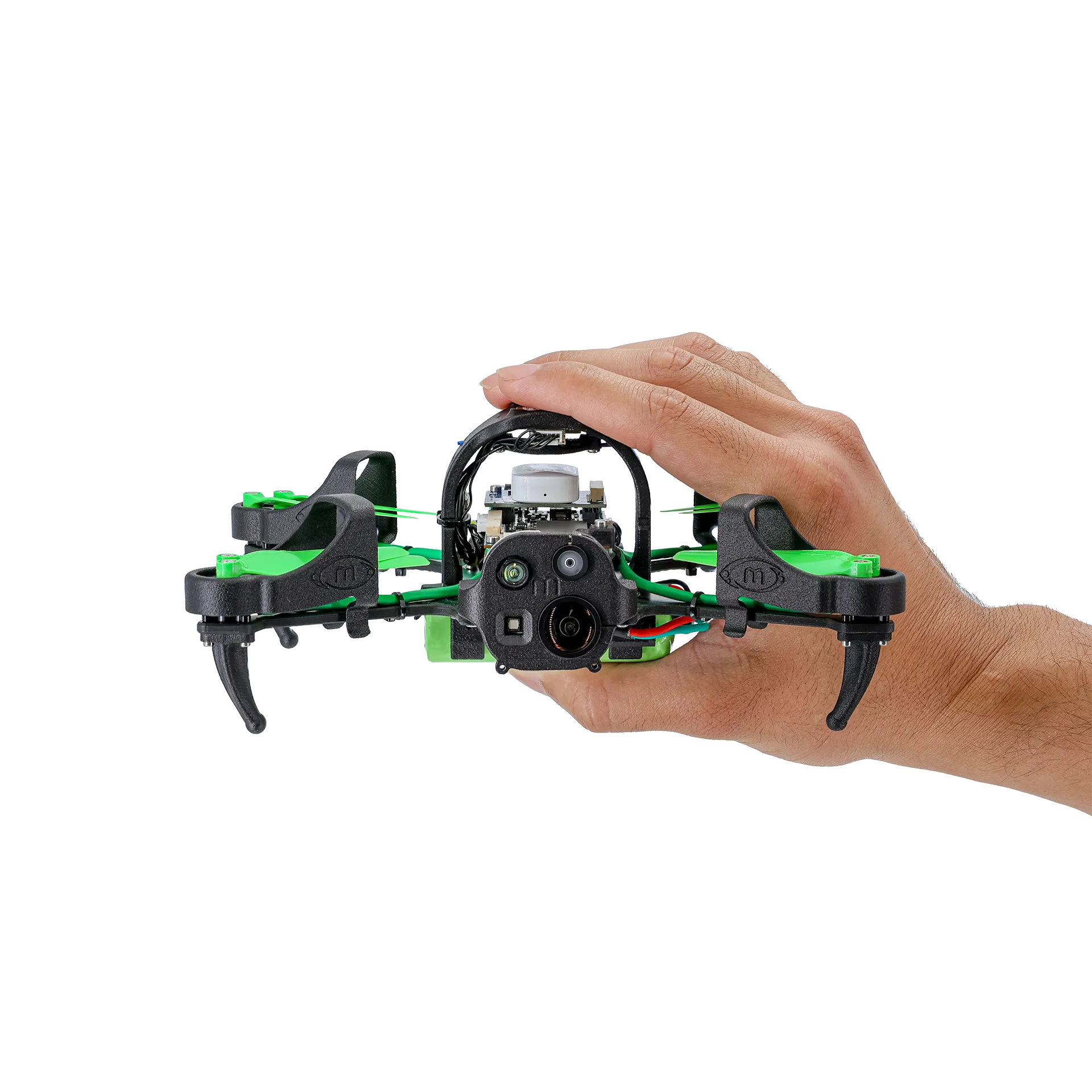

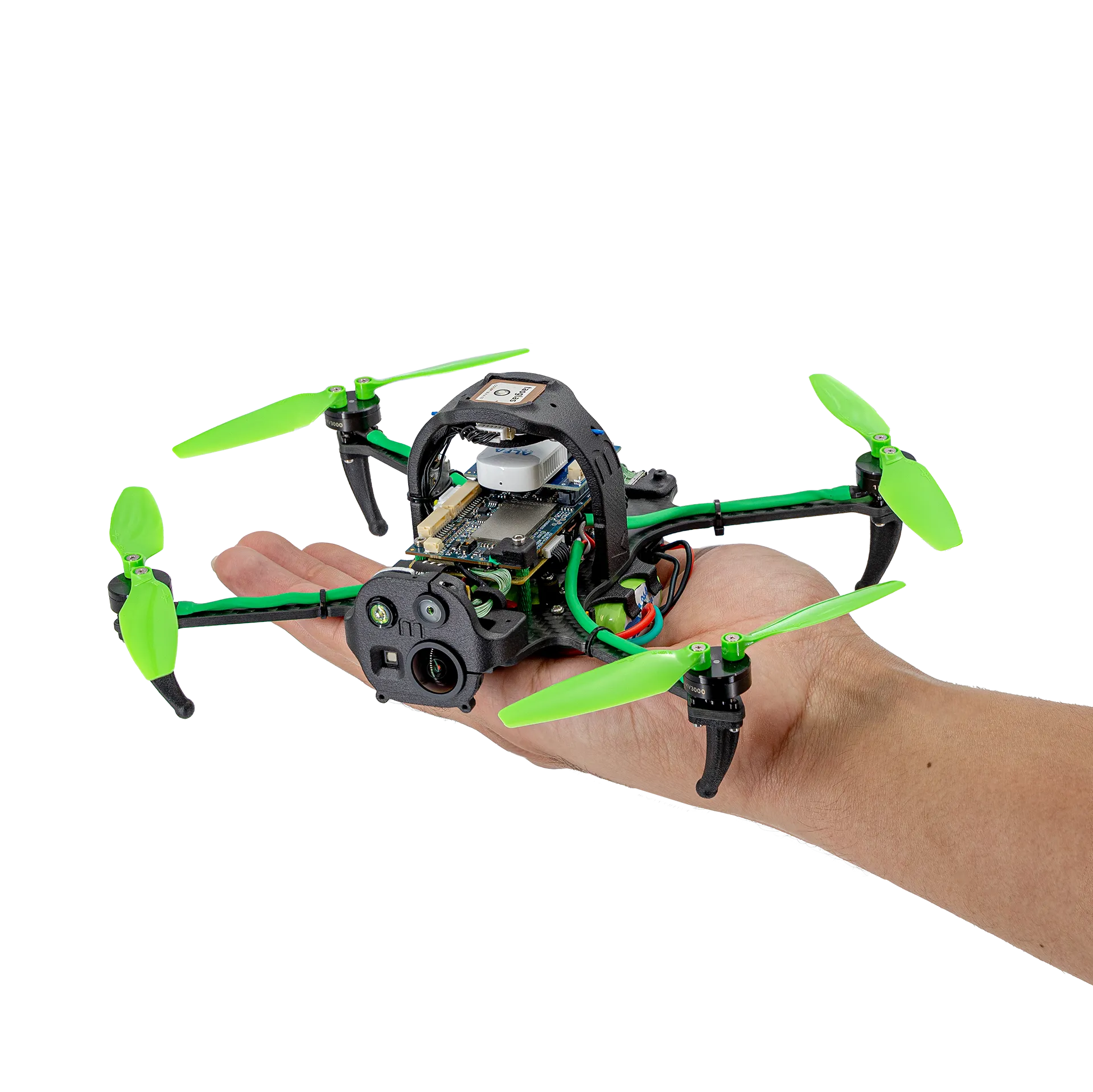

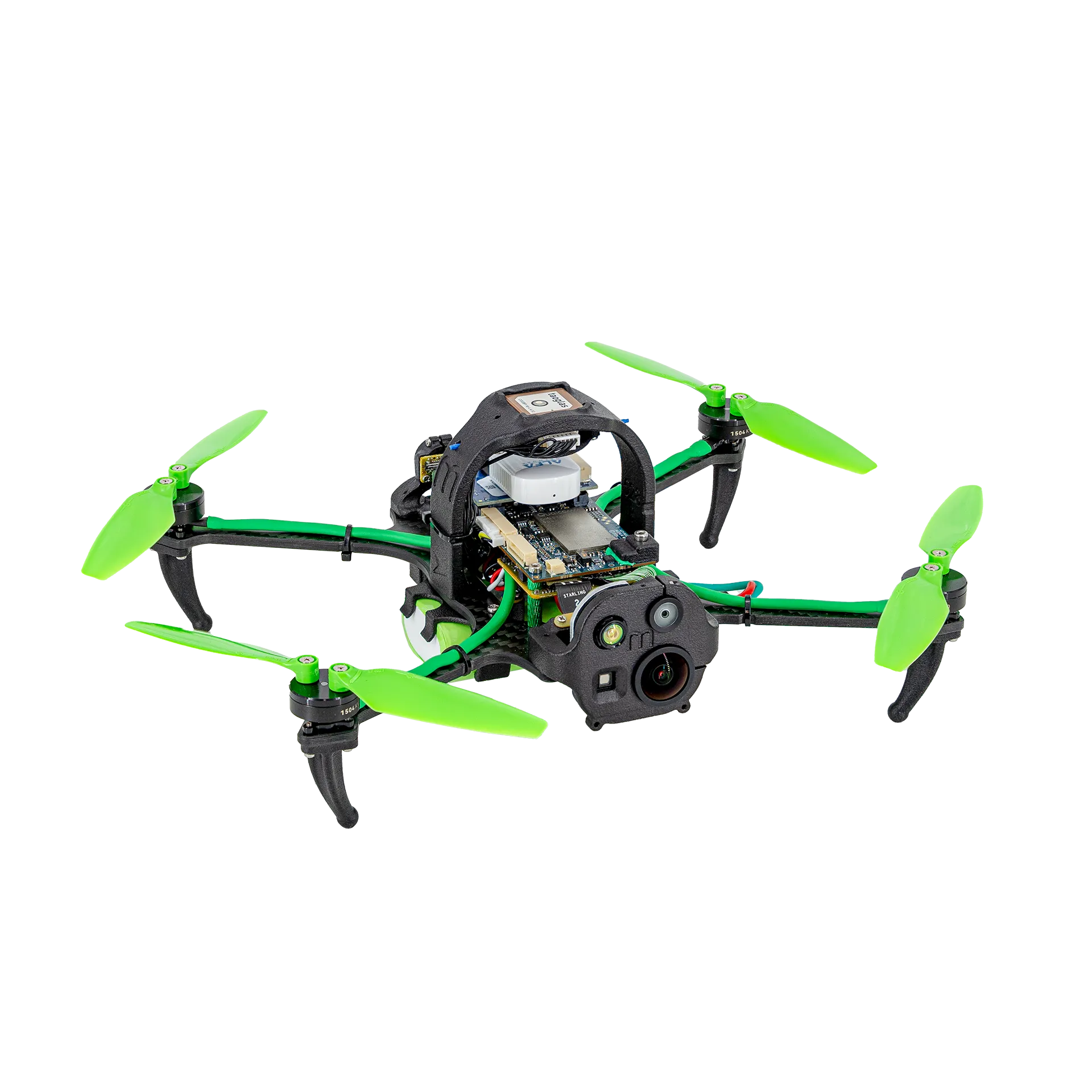

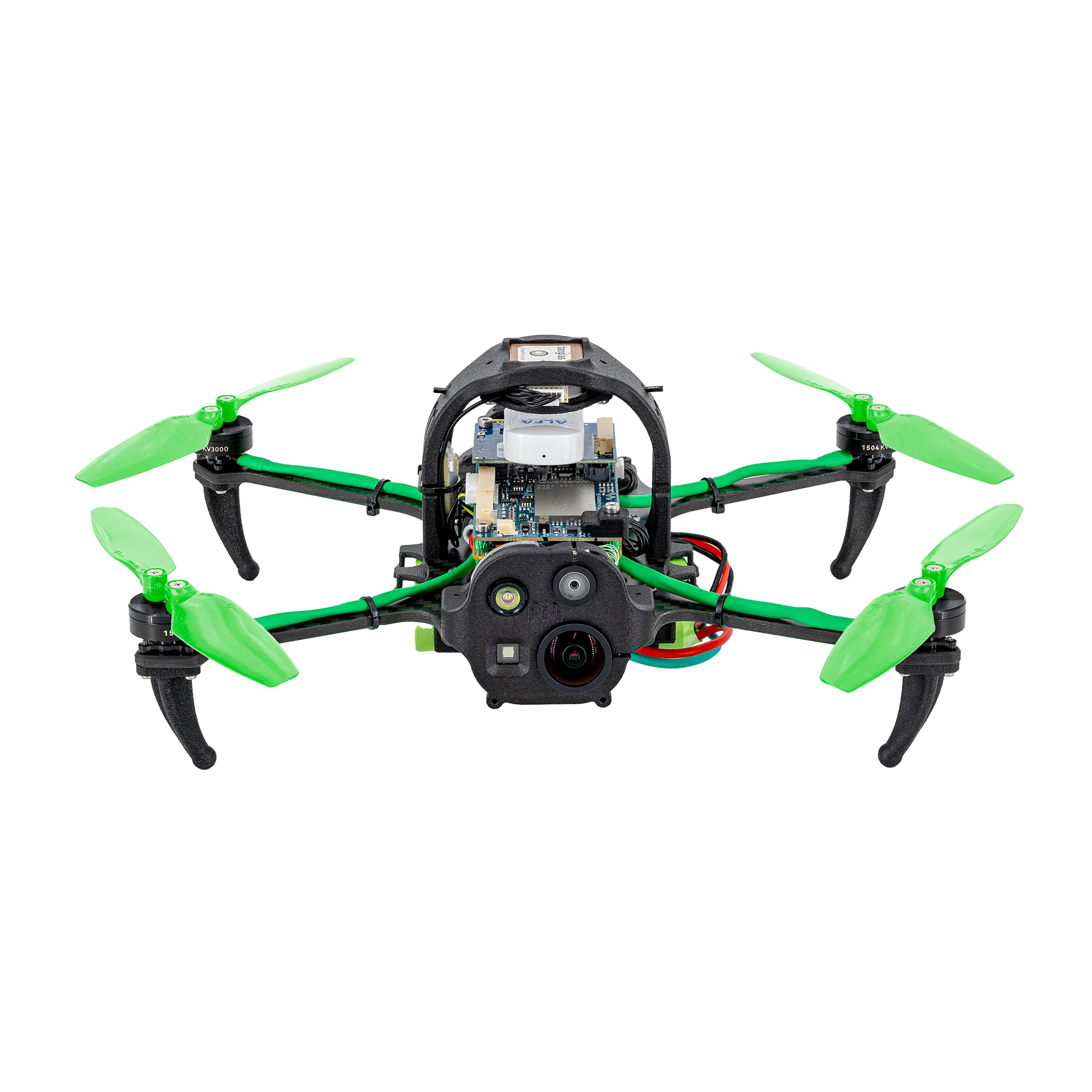

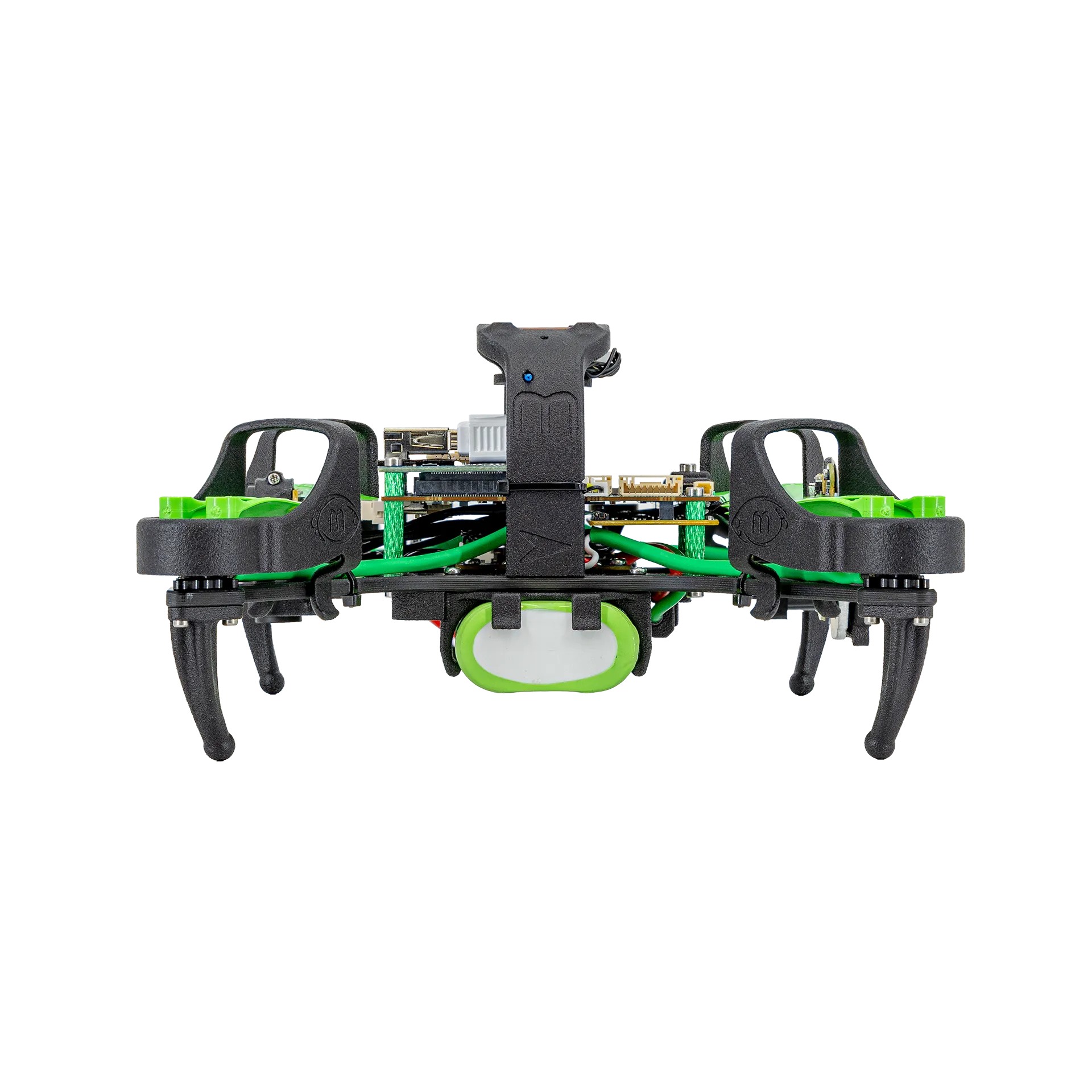

The Starling 2 is an NDAA-compliant development drone supercharged equipped with a new image sensor suite for precise, indoor visual navigation and SLAM. Powered by Blue UAS Framework autopilot, , the Starling 2 weighs 280g and boasts an impressive 40 minutes of autonomous flight time.
Best-in-class Compute and Flight Time
- 280g weight
- 220mm airframe
- 120mm folding propellers
- 40 minutes flight time
Powered by VOXL 2
- is powered by Qualcomm QRB5165: 8 cores up to 3.091GHz, 8GB LPDDR5
- Abundance of perception capabilities including seven MIPI image sensor inputs which can include up to three stereo image sensor pairs, 4K30, PMD ToF
- Integrated flight controller on DSP with TDK ICM-42688 IMU and ICP-10111 Barometer
Software Features
- Advanced Autonomy
- Visual Inertial Odometry to navigate in GPS denied environments
- Visual Obstacle Avoidance to fly safely in tight spaces
- 3D Mapping and Path Planning to fly hands-off in dynamic environments
- TFLite Neural Networks run object classification, detection, and other models
- Open-source software: OpenCV, ROS 2, Docker, PX4 integrated flight controller
- VOXL SDK
- Built-in Connectivity
- Wi-Fi
- R/C
- ELRS (Express LRS)
- Ghost Atto
Technical Specifications
(Not Included) - ISDT Q6 Nano Lipo Charger/Discharger
What's Included
Two camera configurations are supported for the following SKUs

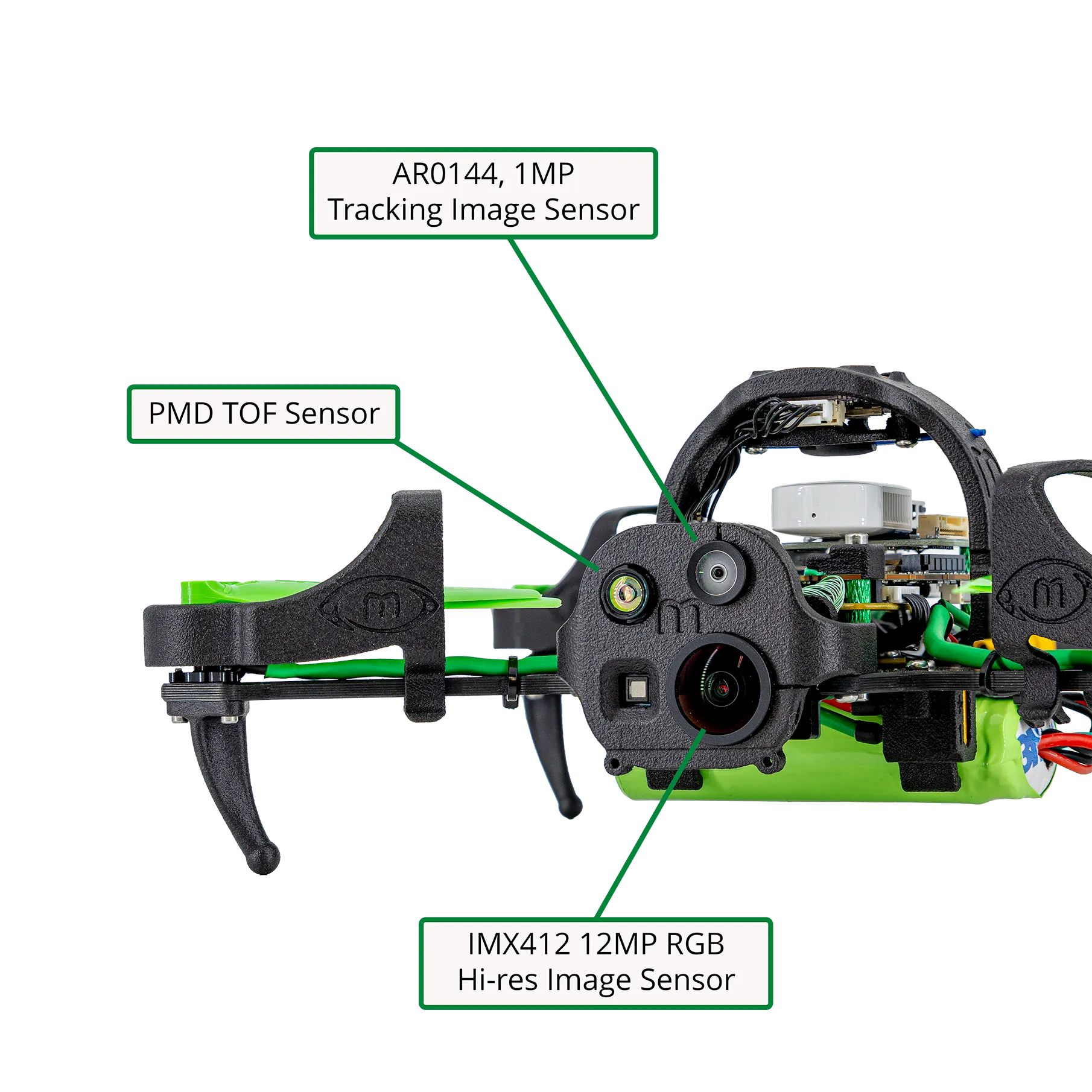

| Camera Config | High-resolution | Tracking | TOF | Thermal |
| -C26 | 12MP RGB | Dual 1MP Tracking | PMD | None |

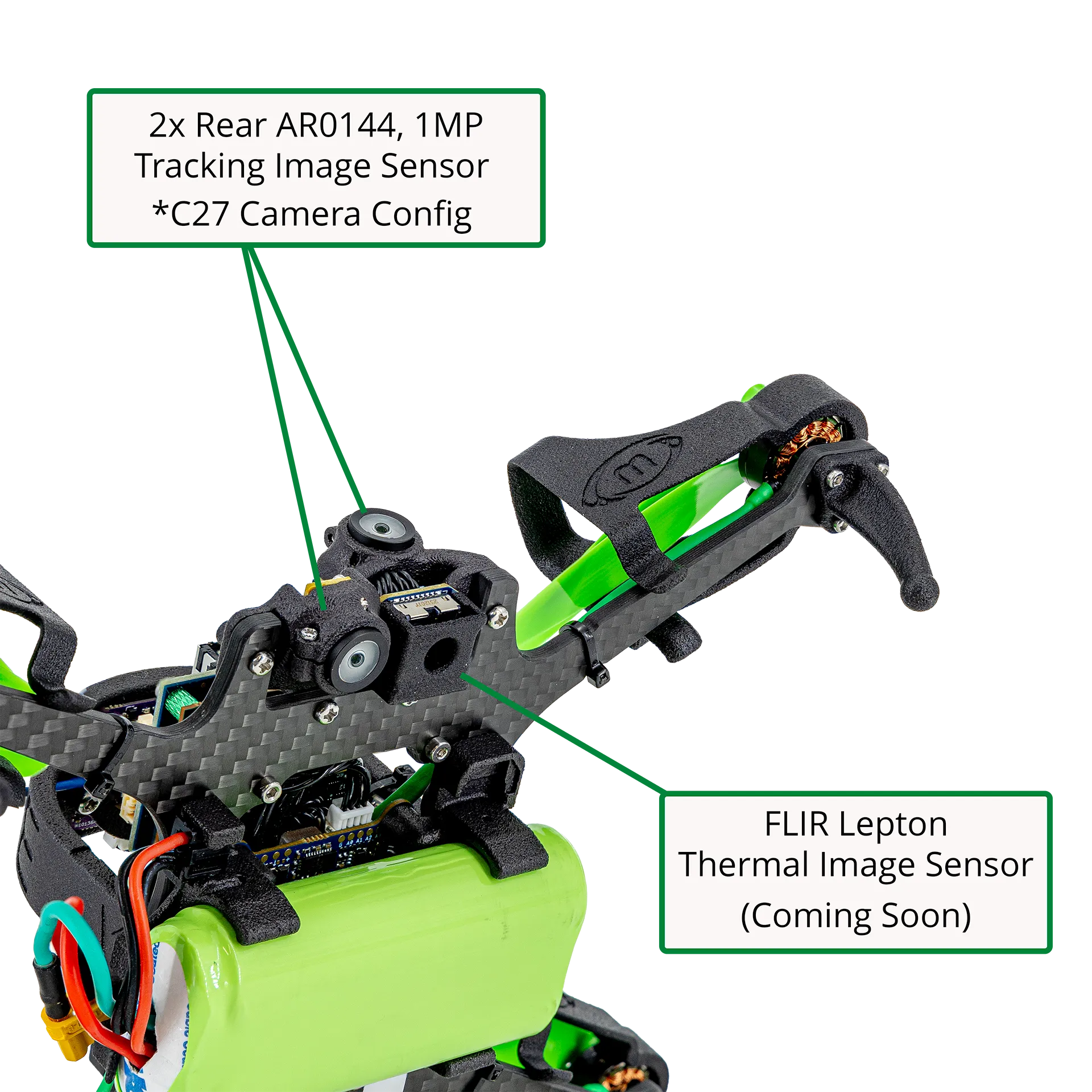

| -C27 | 12MP RGB | Triple 1MP Tracking | PMD | |

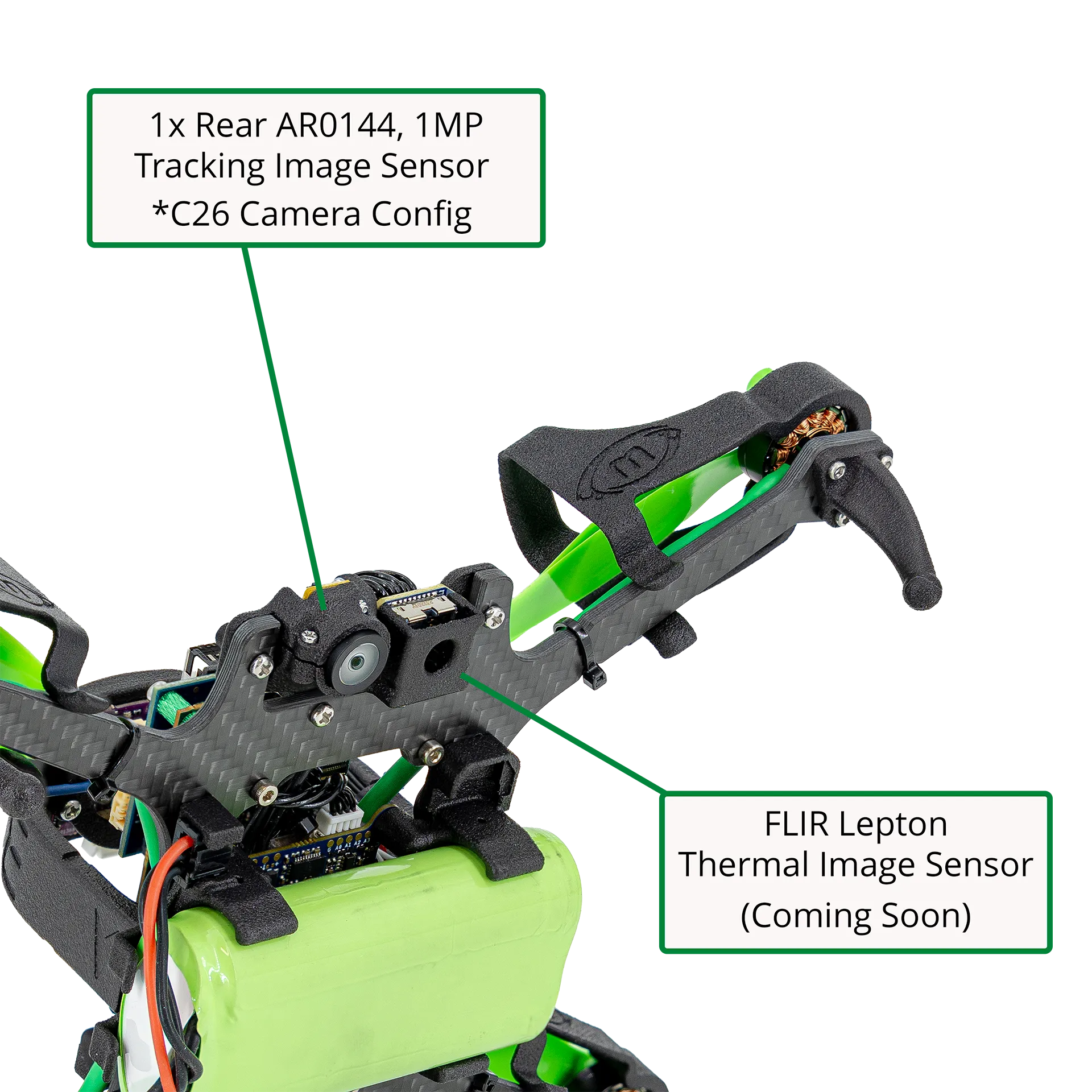

| Coming Soon | 12MP RGB | Triple 1MP Tracking | PMD | FLIR Lepton |
Two remote control options are supported
| R/C Config | Receiver | Transmitter (If Applicable) | Frequency |
| -T9 | Ghost Atto | Ghost UberLite | 2.4GHz |
| -T7 | BetaFPV Nano RX Receiver | iFlight Commando 8 | 915MHz |
Multiple kit options for ready to fly integration.
| SKU | Description |
| -K0 | Drone Only |

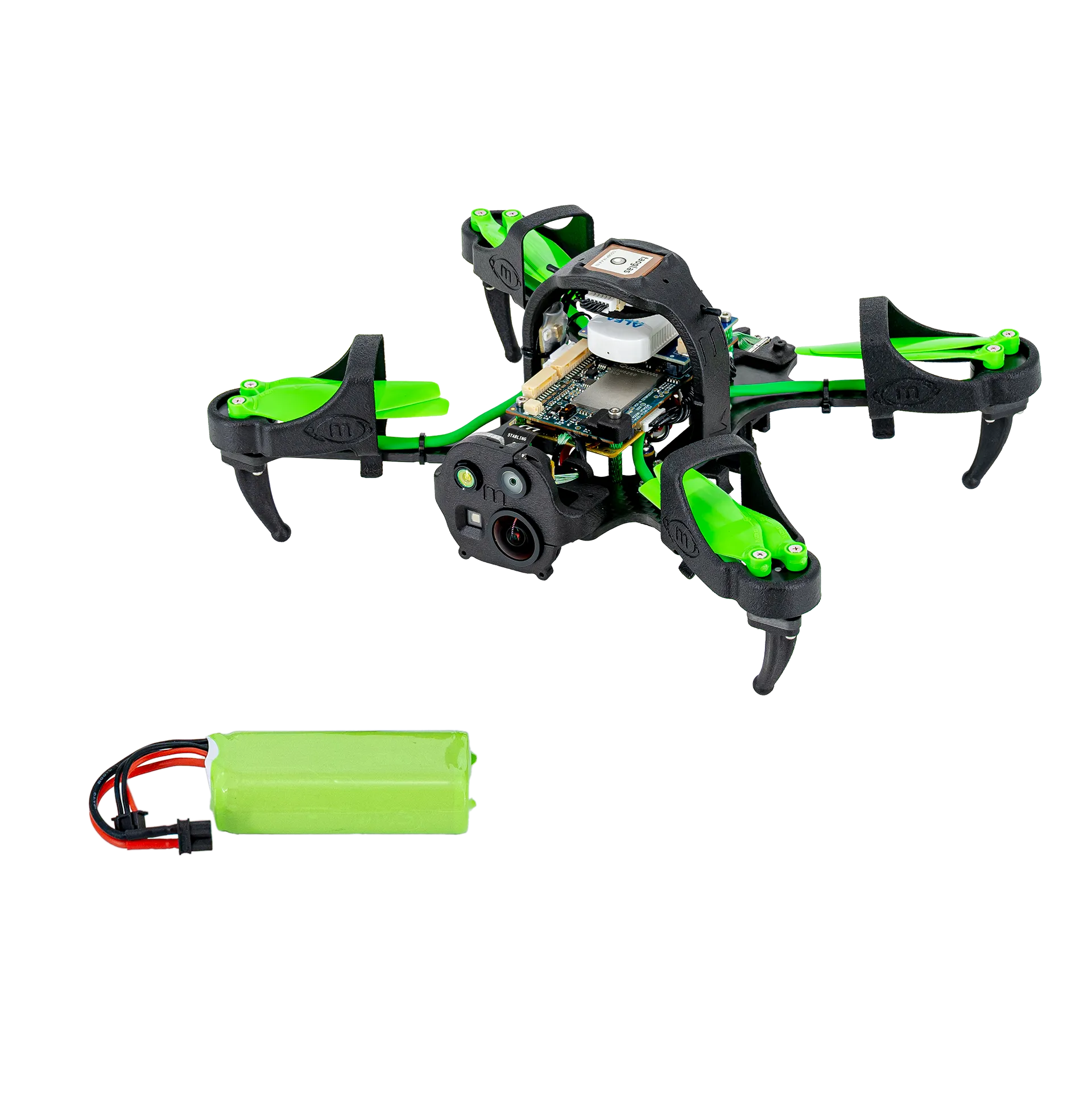

| -K1 | Drone and Battery |

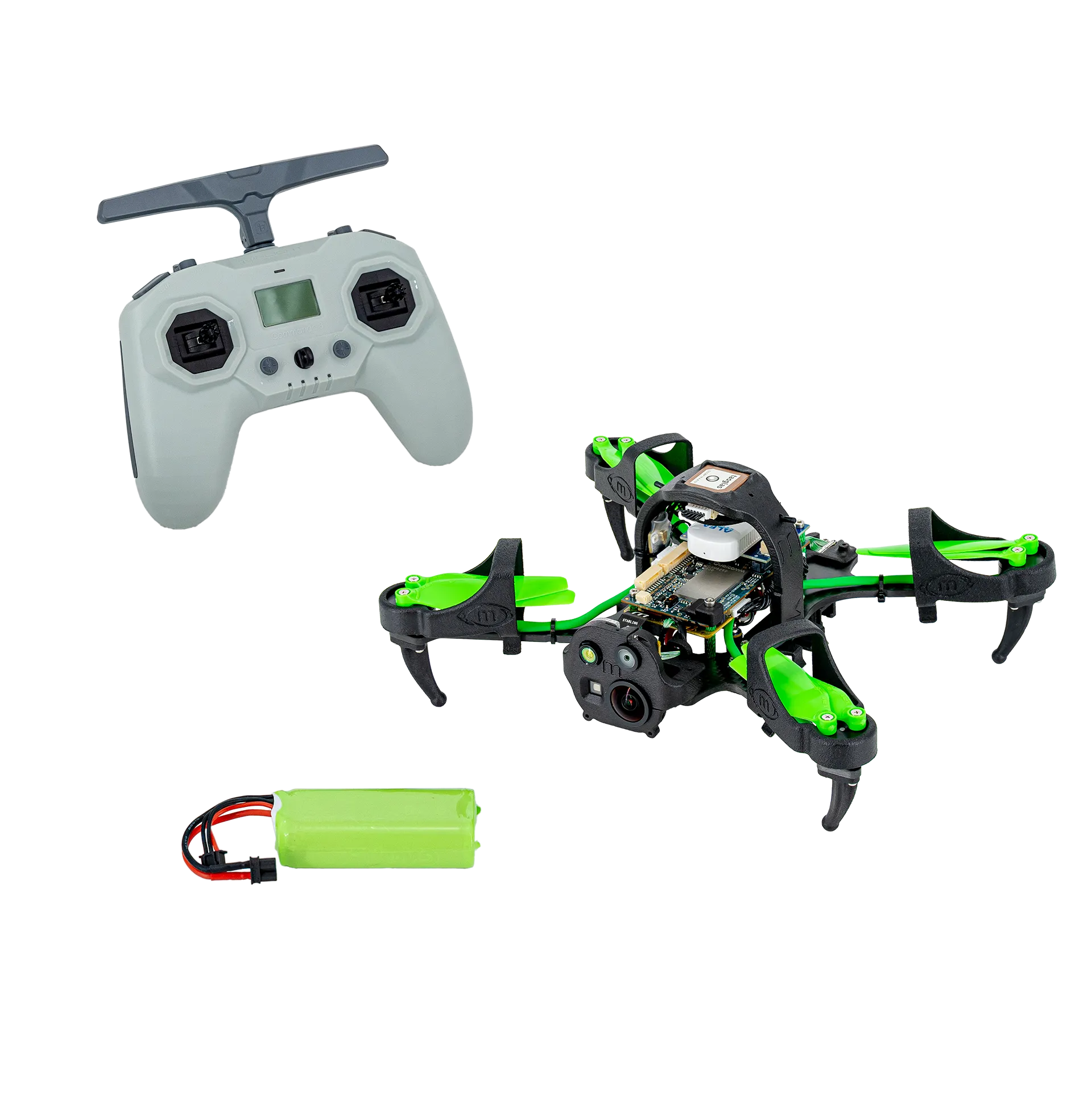

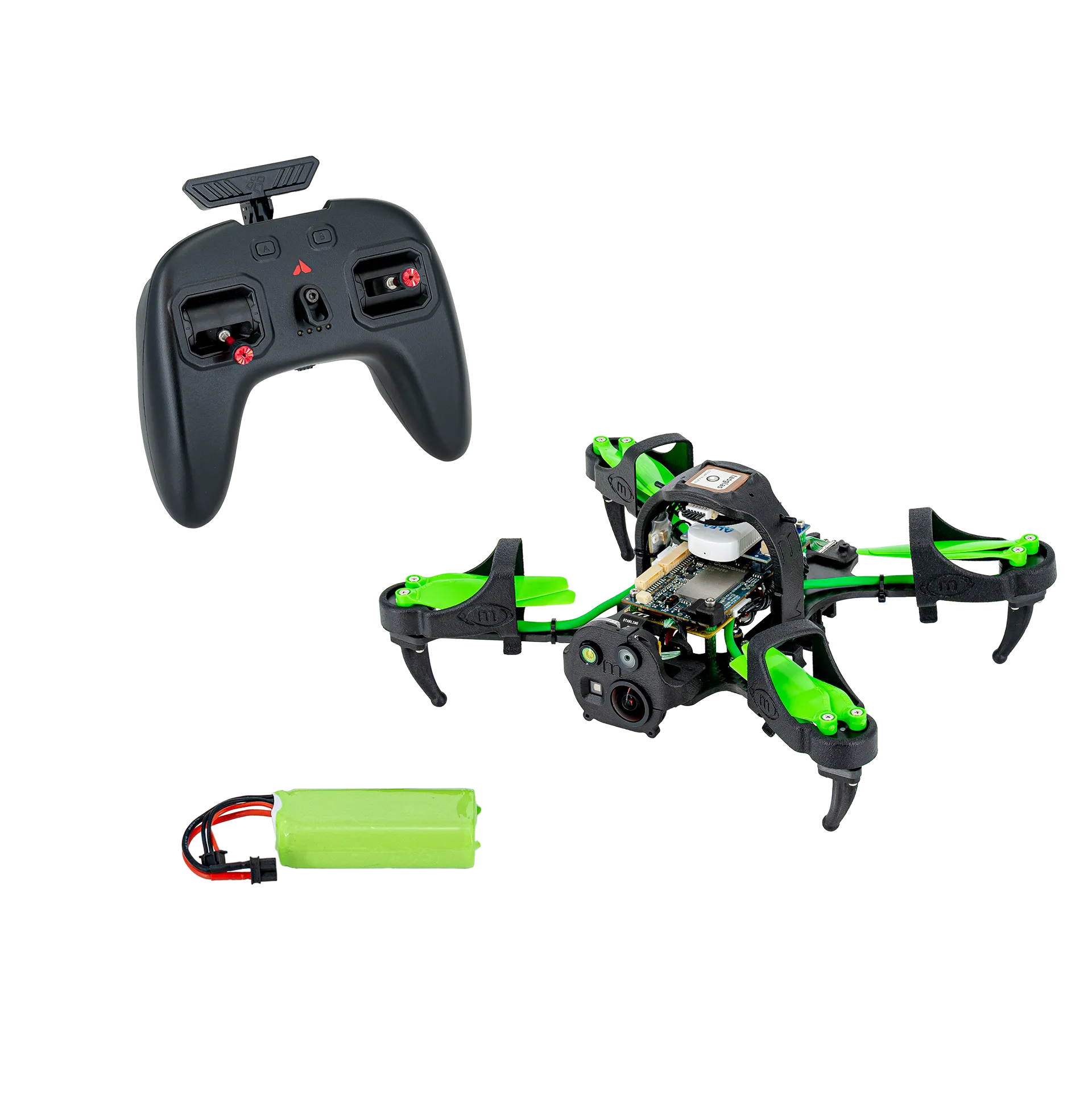

| -K2 | Drone with Battery and Controller (if Radio is selected) |

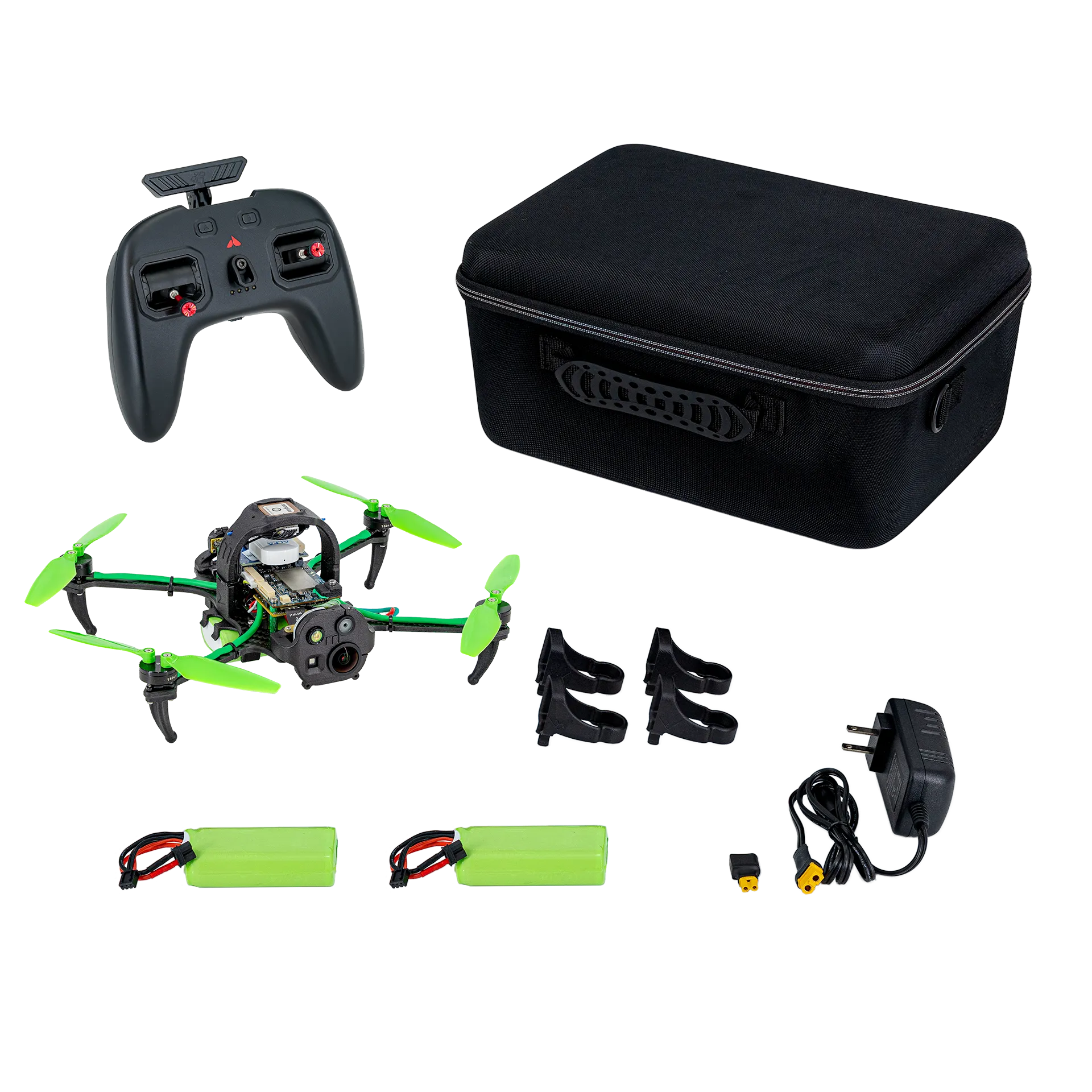

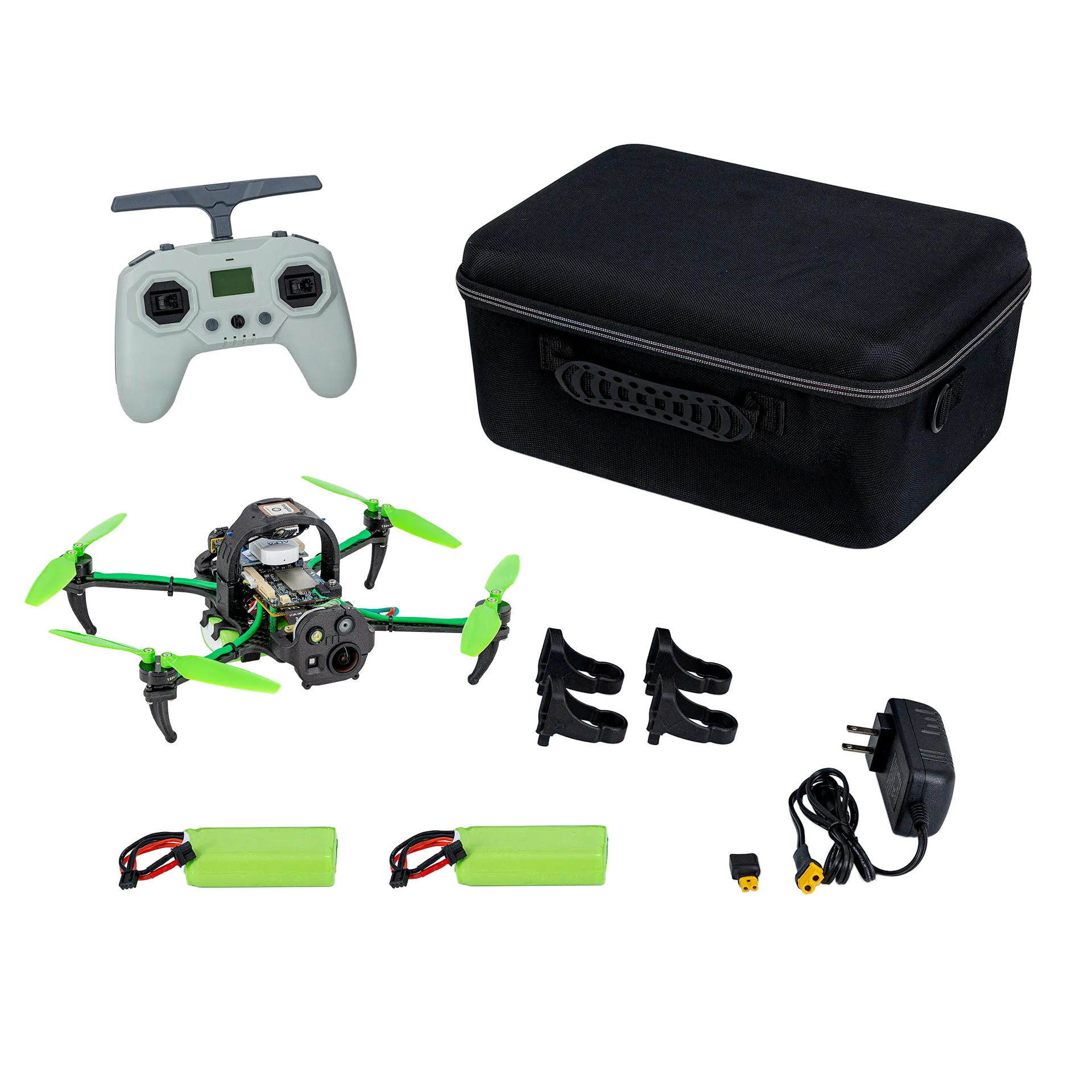

| -K3 | Drone with Case, 2 batteries, wall power supply and Controller (if Radio is selected) |
Export Information
| Item | Value |
| EAR99 | |
| Harmonized Tariff Schedule (HTS) Code | 8802.11.0190 |
| Country of Origin | USA |
| Radio Frequencies Used | WiFi: 2.4GHz / 5GHz (FCC ID 2AB878811) R/C with -T7 in SKU: 915MHz R/C with -T9 in SKU: 2.4GHz |
| RoHS Compliant | Yes |
